To enable advanced policy-based routing in Junos OS and activate a static route with a next-hop address in the inet.0 table within your routing instance, you should utilize RIB groups. RIB groups allow you to import routes from one routing table to another. In this scenario, the static route within the routing instance needs access to the inet.0 routes, which is facilitated by configuring a RIB group. Juniper’s documentation outlines RIB groups as a necessary component for handling instances where routes need to be shared across routing tables, thereby ensuring seamless traffic flow through specified routes. For more details, refer to the Juniper Networks Documentation on RIB Groups.
In Junos OS for SRX Series devices, when enabling advanced policy-based routing and configuring a static route with a next-hop from the inet.0 routing table, the issue arises because the static route is not being used in the routing instance. This is a common scenario when the next-hop belongs to a different routing table or instance, and the routing instance is not aware of that next-hop.
To resolve this, RIB (Routing Information Base) groups are used. RIB groups allow routes from one routing table (RIB) to be shared or imported into another routing table. This means that the routing instance can import the necessary routes from inet.0 and make them available for the routing instance where the policy- based routing is applied.
Detailed Steps:
* Configure the Static Route: First, configure the static route pointing to the next-hop in inet.0. Here’s an example:
bash
set routing-options static route 10.1.1.0/24 next-hop 192.168.1.1
This static route will be placed in the inet.0 routing table by default.
* Create and Apply a RIB Group: To import routes from inet.0 into the routing instance, create a RIB group configuration. This will allow the static route from inet.0 to be visible within the routing instance.
Example configuration for the RIB group:
bash
set routing-options rib-groups RIB-GROUP import-rib inet.0
set routing-options rib-groups RIB-GROUP import-rib <routing-instance-name>.inet.0 This configuration ensures that routes from inet.0 are imported into the specified routing instance.
* Apply the RIB Group to the Routing Instance: Once the RIB group is configured, apply it to the appropriate routing instance:
bash
set routing-instances <routing-instance-name> routing-options rib-group RIB-GROUP
* Verify Configuration: Use the following command to verify that the static route has been imported into the routing instance:
bash
show route table <routing-instance-name>.inet.0
The output should now display the static route imported from inet.0.
Juniper Security Reference:
* RIB Groups Overview: Juniper’s documentation provides detailed information on how RIB groups function and how to use them to share routes between different routing tables. This is essential for scenarios involving policy-based routing where routes from one instance (like inet.0) need to be available in another instance. Reference: Juniper Networks Documentation on RIB Groups.
By using RIB groups, you ensure that the static route from inet.0 is available in the appropriate routing instance for policy-based routing to function correctly. This avoids the need for other methods like filter- based forwarding or transparent mode, which do not address the specific issue of static route visibility across routing instances.

In multinode HA, the active node retains its role and maintains the active signal route even if the ICL link fails, as long as a backup signal route IP is configured. This backup ensures continuity in failover scenarios.
For detailed information, refer to Juniper Multinode HA Documentation.
In amultinode HA (High Availability)deployment with SRX devices, theInter-Chassis Link (ICL)is critical for communication between the active and backup nodes. If the ICL link fails, the system relies on thebackup signal routeto continue monitoring the state of the HA deployment.
* Explanation of Answer A (Active Node Retains Active Role):
* If the ICL link fails but the backup signal route is still operational, the active node will retain its role as the active node. This is because the signal route allows the active node to confirm its operational state.
* Explanation of Answer D (Active Node Keeps Signal Route):
* The active node will maintain the signal route if the backup signal route remains operational. The backup node will not preemptively take over the active role unless it detects that the active node has failed entirely.
Juniper Security Reference:
* Multinode HA Overview: The backup signal route in multinode HA ensures that the active node retains control as long as it can maintain a signal route. Reference: Juniper HA Documentation.

Explanation:

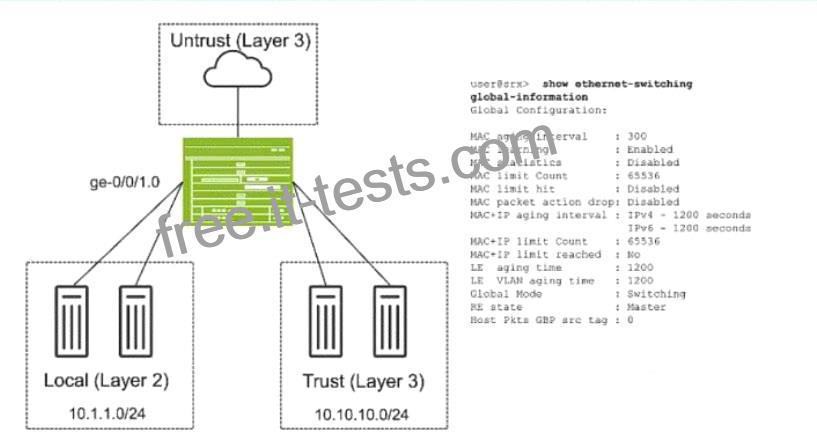

In mixed mode, SRX devices can simultaneously handle Layer 2 switching and Layer 3 routing, but a reboot is required when configuring Layer 2 and Layer 3 interfaces to ensure the configuration takes effect. Layer 2 packets are switched within the defined bridge domain. Further guidance on SRX mixed mode can be found at Juniper Mixed Mode Documentation.
When an SRX Series device is configured in mixed mode, both Layer 2 switching and Layer 3 routing functionalities can be used on the same device. This enables the SRX to act as both a router and a switch for different interfaces.
After configuring the SRX to operate with at least one Layer 2 interface and one Layer 3 interface, the device needs to be rebooted. This is required to properly initialize the mixed mode configuration, as the SRX needs to switch between Layer 2 and Layer 3 processing modes.
In mixed mode, traffic from Layer 2 interfaces is switched within the same bridge domain. A bridge domain defines a Layer 2 broadcast domain, and packets from Layer 2 interfaces are forwarded based on MAC addresses within that domain.

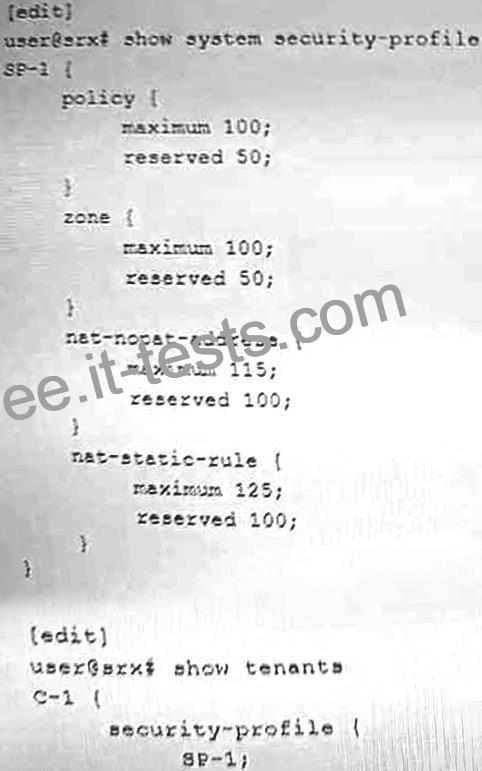

The system security profile named sp-1 has designated resources for policies and zones with a maximum of 100 and a reservation of 50 each. For NAT with no port address translation (nat-nopat- address), there is a maximum of 115 and a reservation of 100, and for static NAT rules (nat-static-rule), there is a maximum of 125 with 100 reserved.
When considering tenant systems, the profile applied (sp-1) will dictate the resources available to the tenant system named c-1.
The c-1 TSYS has a reservation for the security flow resource. – This would be true if the ‘security flow resource’ refers to policies and zones since there are reservations made in the profile sp-1.
The c-1 TSYS can use security flow resources up to the system maximum. – This is generally true for any tenant system unless there are explicit limits set that are lower than the system maximum.

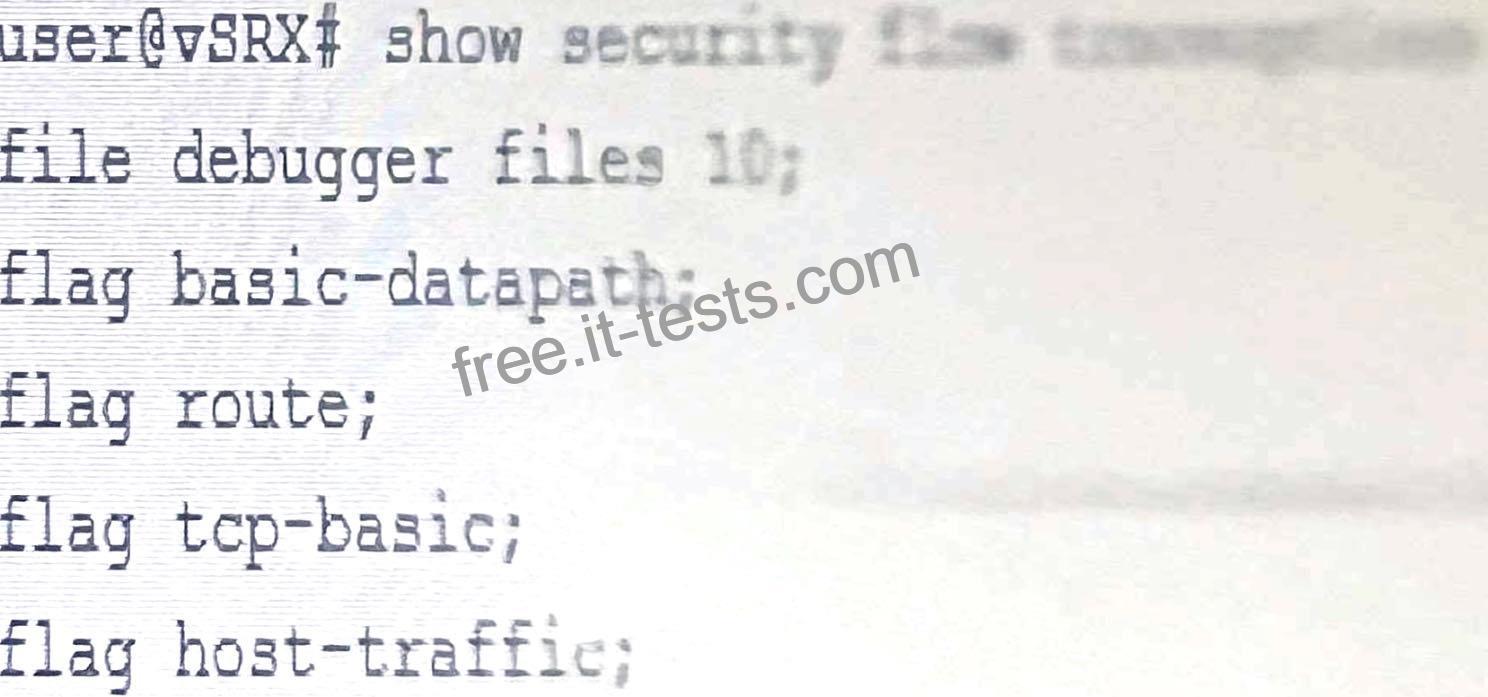

Once the trace has generated 10 log files, older logs will be overwritten. – This is generally true if the configuration includes a file count limit and the ‘world-readable’ flag. Without the ‘world-readable’ flag, only the file’s owner or superuser can read the file. If the ‘no-world-readable’ flag is set, only the user that created the file and root can read it.
Once the trace has generated 10 log files, the trace process will halt. – This would be true only if the ‘files’ statement is used without the ‘world-readable’ or ‘no-world-readable’ flag. If ‘no-world-readable’ is set, the trace files are not readable by all users.

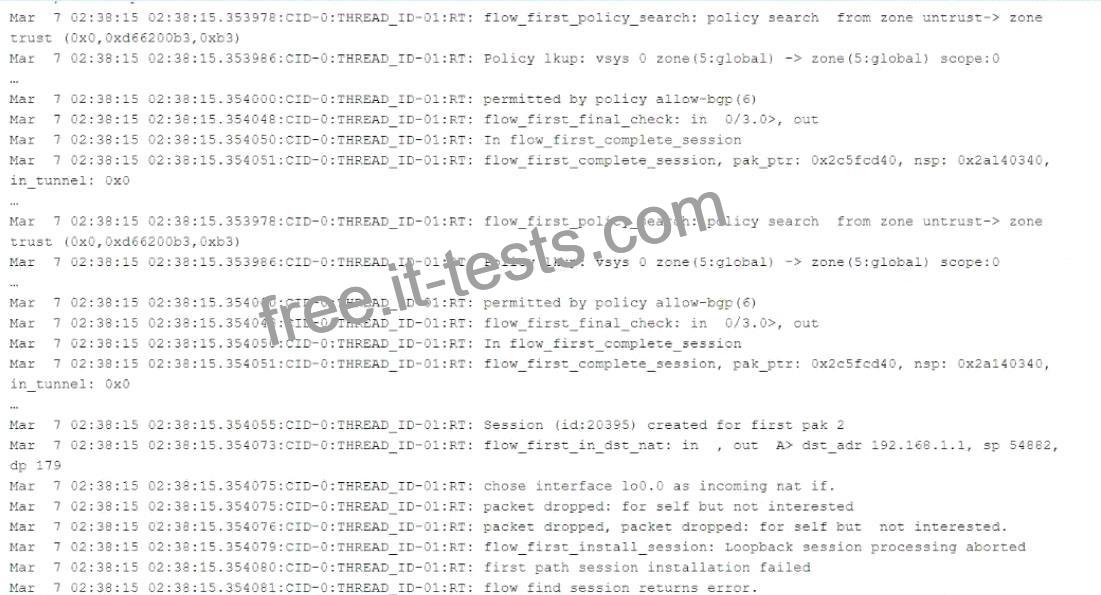

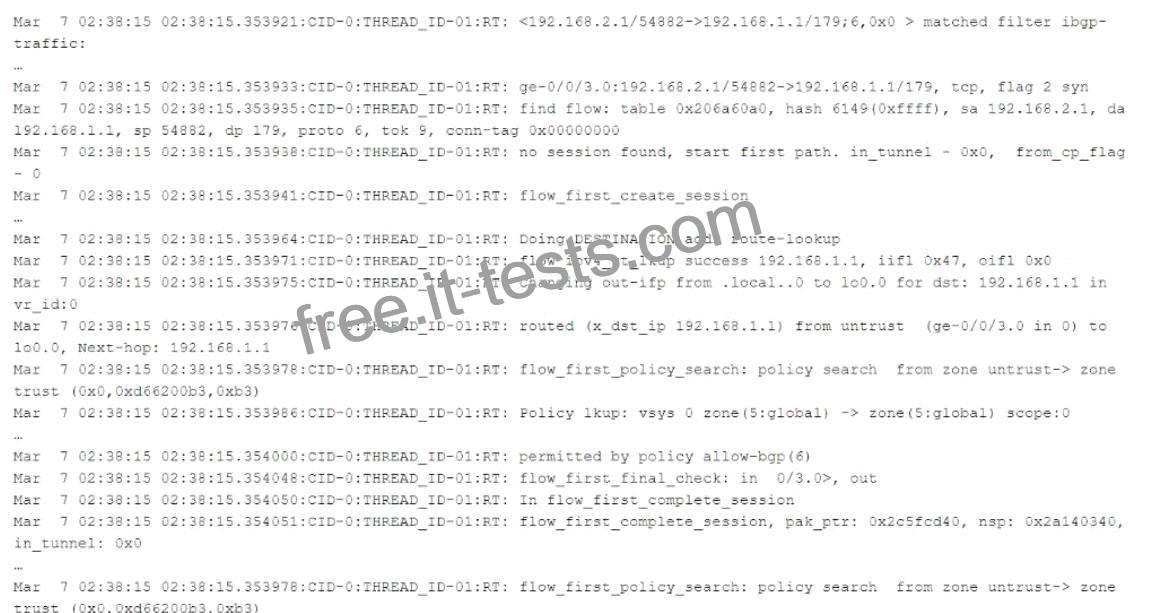

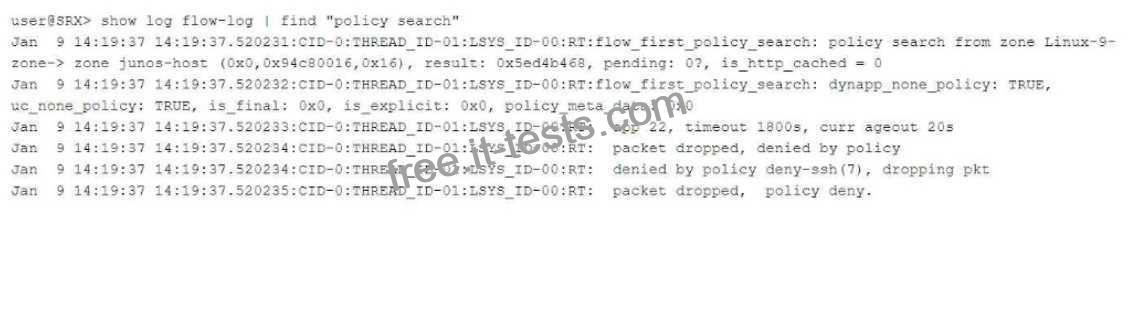

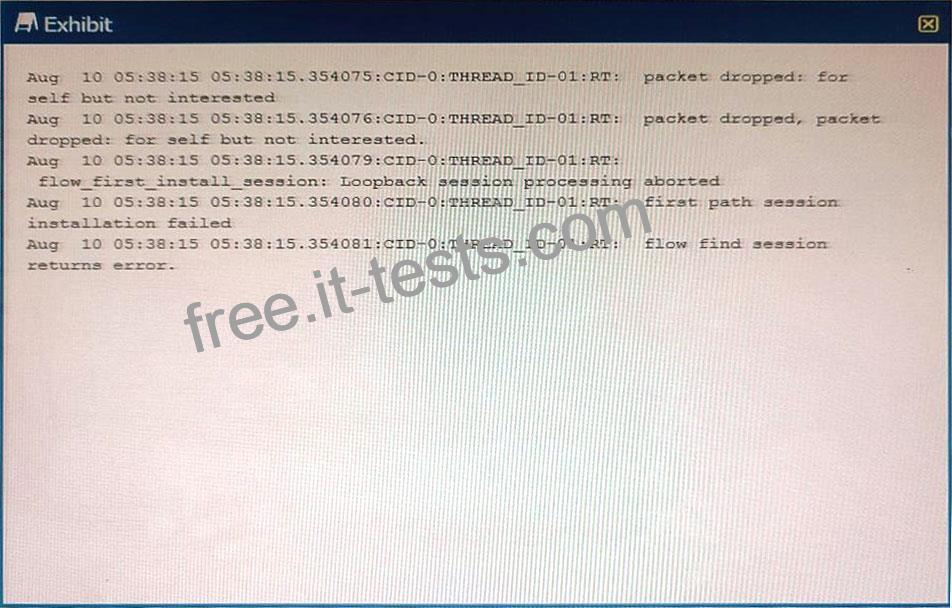

In Juniper SRX devices, for IBGP (internal BGP) sessions to be established, the firewall must permit BGP traffic to the loopback interface (lo0). BGP uses TCP port 179, and the device must explicitly allow incoming connections to this port. The trace options show that the packets are reaching the firewall but are not permitted.
* Correct Action (A): Adding a security policy to thejunos-hostzone will permit the BGP packets. The junos-hostzone represents traffic destined for the control plane (e.g., BGP traffic to the loopback interface). By creating a security policy that allows traffic on TCP port 179 to thejunos-hostzone, the IBGP session will be able to establish.
Juniper References:
* Juniper SRX Host-inbound Traffic Configuration: Explains the importance of allowing host-inbound traffic for control plane protocols like BGP on the SRX devices.

The Juniper ATP Appliance platform collects, inspects and analyzes advanced and stealthy web, file, and email-based threats that exploit and infiltrate client browsers, operating systems, emails and applications. Juniper ATP Appliance’s detection of malicious attacks generates incident and event details that can be sent to connected SIEM platforms in CEF, LEEF or Syslog formats1. CEF (Common Event Format) is an open log management standard that improves the interoperability of security-related information from different vendors2. Juniper ATP Appliance supports CEF format for sending events and system audit notifications to SIEM servers. You can configure the CEF format in the Juniper ATP Appliance Central Manager WebUI Config > Notifications > SIEM Settings1. Therefore, the correct answer is C. CEF is a supported logging output format for Juniper ATP Appliance.
The other options are incorrect because:
A) WELF (WebTrends Enhanced Log Format) is a proprietary log format developed by WebTrends Corporation for web analytics3. Juniper ATP Appliance does not support WELF format for SIEM integration.
B) JSON (JavaScript Object Notation) is a lightweight data-interchange format that is easy for humans and machines to read and write4. Juniper ATP Appliance supports JSON format for HTTP API results, but not for SIEM notifications1.
D) Binary is a numeric system that uses only two digits: 0 and 1. Binary is not a logging output format for Juniper ATP Appliance or any SIEM platform.
Reference: SIEM Syslog, LEEF and CEF Logging
Common Event Format Configuration Guide
WebTrends Enhanced Log Format
JSON
