Juniper JN0-682 Questions and Answers Guarantee you Oass the Test Easily

Share Latest JN0-682 DUMP with 130 Questions and Answers

Juniper JN0-682 Exam Syllabus Topics:

Topic	Details
Topic 1	Describe data center security concepts Describe data center deployment concepts
Topic 2	Demonstrate knowledge of configuring, monitoring, or troubleshooting EVPNs VXLAN control planes
Topic 3	Describe data center management concepts Describe single-tenant and multi-tenant architectures
Topic 4	IP Fabric architecture IP Fabric best practices Multitenancy (routing instances)
Topic 5	Demonstrate knowledge of configuring, monitoring, or troubleshooting IP Fabrics Filter-based forwarding

Q77. You are designing a Layer 3 fabric underlay using EBGP. You will implement an E VPN-signaled VXLAN overlay on the Layer 3 fabric.
In this scenario, what must you do in the underlay to ensure that the VXLAN overlay will be able to function properly?

The underlay should support the PIM protocol

Each device in the underlay should advertise its loopback address

The underlay should be configured with a separate VRF tor each potential tenant

The underlay should advertise the host connected interlaces on all leaf device

Q78. You are asked to enable visibility into your EVPN-VXLAN network traffic by monitoring traffic continuously. Which two statements are correct in this scenario? (Choose two.)

You cannot enable sFlow monitoring on each interface individually.

The sFlow agent is installed by default on your OFX Series switch.

You must enable sFlow monitoring on each interface individually.

The sFlow agent needs to be manually installed on your QFX Series switch.

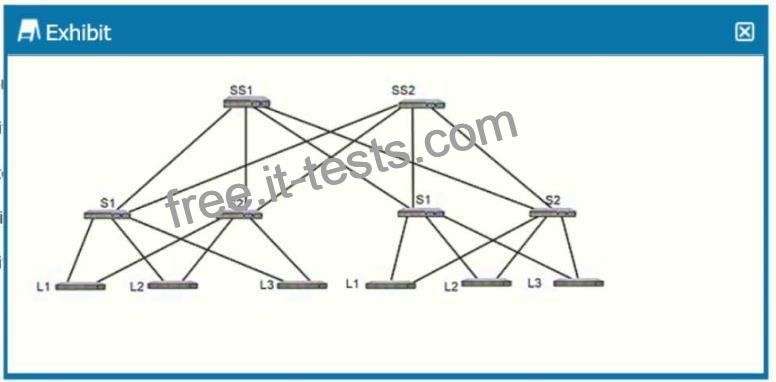

Q79. Exhibit.

Referring to the exhibit, which statement is correct?

The exhibit shows a 5-stage IP fabric architecture.

The exhibit shows a collapsed fabric architecture.

The exhibit does not represent a valid fabric architecture.

The exhibit shows a 3-stage IP fabric architecture.

Q80. You are building an IP fabric underlay for your data center. You are asked to ensure that the two spine devices are in the same AS (65000) while the six leaf devices are in a different AS (65512).
In this scenario, which two statements are correct by default? (Choose two.)

All BGP routes advertised by a leaf device will be accepted on the spine devices.

A leaf device will accept all BGP routes received from the spine that were originated from another leaf device.

All BGP routes advertised by a leaf device will be rejected on the spine devices.

A leaf device will reject all BGP routes received from the spine that were originated from another leaf device.

Q81. Referring to the exhibit, which statement is correct?

The exhibit shows a 5-stage IP fabric architecture.

The exhibit shows a collapsed fabric architecture.

The exhibit does not represent a valid fabric architecture.

The exhibit shows a 3-stage IP fabric architecture.

Q82. You are creating a new EVPN and are asked to selectively accept certain MAC advertisement routers from your EVPN peers using VXLAN Encapsulation.
Which statements is correct in this scenario?

You can use VRF policies and route distinguisher values to filter out unwanted routes.

You can use VBRF import policies and community values to filter out unwanted routes.

You can use MAC filtering to filter out unwanted routes.

You can use firewall filters to filters out unwanted routes

Q83. You are asked to manage the oversubscription ratio of your spine and leaf IP fabric. You determine that you are at a 3:1 ratio of downstream to upstream traffic and must achieve a 1.1ratio. In this scenario, which two actions would you take to achieve this goal? (Choose two.)

Reduce the number of leaf nodes on your design.

Increase the number of spine nodes in your design.

Increase the number of server facing ports that each leaf node uses to carry traffic.

Reduce the number of server facing that each leaf node uses to carry traffic.

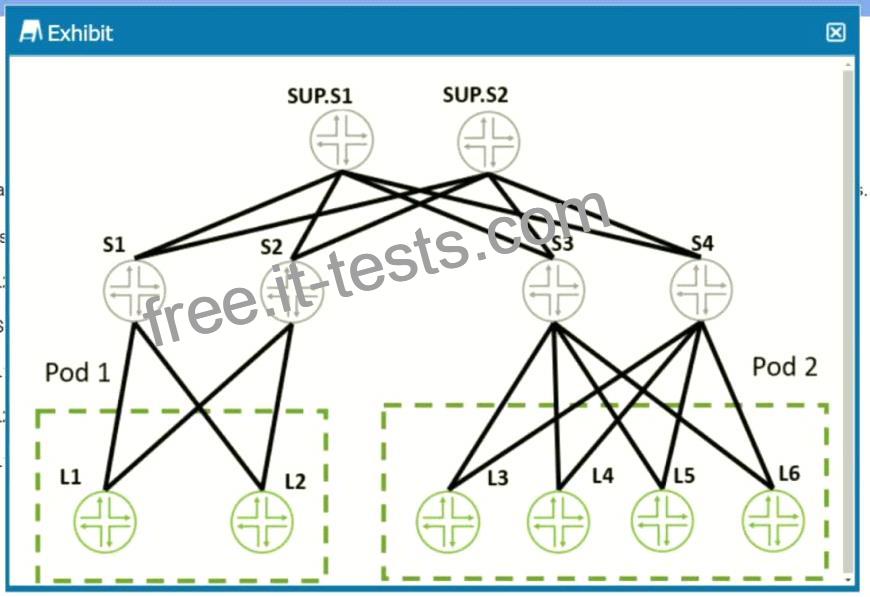

Q84. Exhibit.

Referring to the exhibit, you have a data center with two PODs. Seamless EVPN-VXLAN stitching is used to facilitate communication between the PODs.
Which three statements are true in this scenario? (Choose three.)

AVXLAN tunnel can form between L2 and S1.

A VXLAN tunnel can form between S1 and S2.

AVXLAN tunnel can form between L1 and L2.

AVXLAN tunnel can form between L2 and S3.

AVXLAN tunnel can form between L1 and L4.

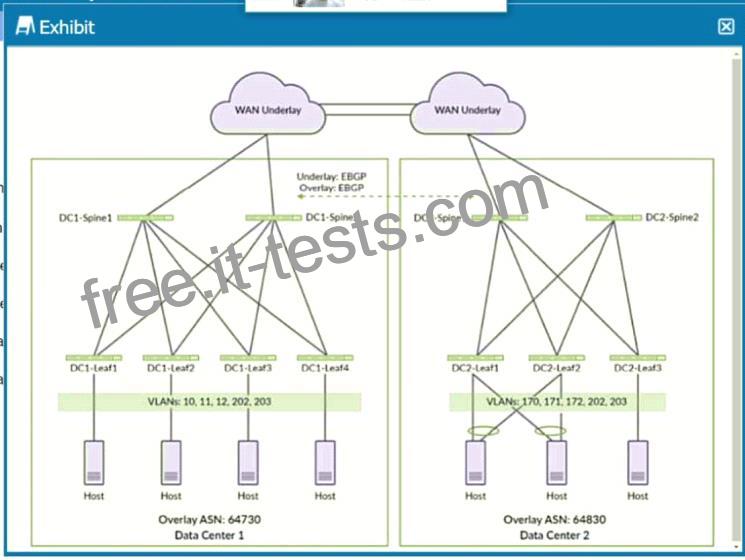

Q85. Exhibit.

The two data centers shown in the exhibit need to be connected using EVPN.
Which two statements are correct in this situation? (Choose two.)

Hosts in VLAN 10 can communicate with hosts in Data Center 2 using Layer 3.

Hosts in VLAN 10 can communicate with hosts in Data Center 2 using Layer 2.

Hosts in VLAN 202 can communicate using Layer 3 between data centers.

Hosts in VLAN 202 can communicate using Layer 2 between data centers.

Q86. You are an engineer for a hosting company. You have a new customer that wants the ability to connect any VLAN on any port. They want to have all VLANs map to a single bridge domain and EVPN instance (EVI).
They control all their own routing and just need the connectivity.
Which two parameters should you configure to achieve these goals? (Choose two.)

instance-type mac-vrf

service-type vlan-aware

service-type vlan-bundle

instance-type virtual-switch

Q87. You are evaluating which method to use for learning MAC addresses in your VXLAN network. Which statement is true in this scenario?

Multicast exchanges MAC addresses through data plane learning and is more reliable than EVPN.

EVPN exchanges MAC addresses through control plane learning and is more reliable than multicast.

EVPN exchanges MAC addresses through data plane learning and is more reliable than multicast.

Multicast exchanges MAC addresses through control plane learning and is not more reliable than EVPN.

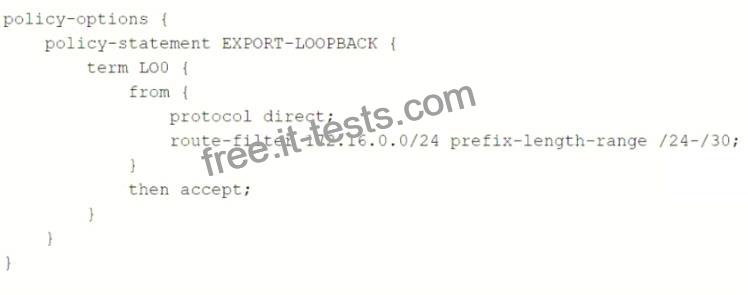

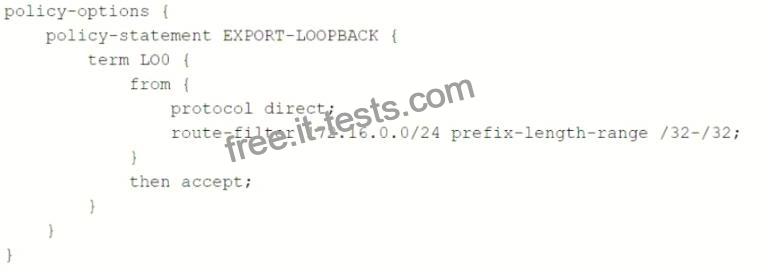

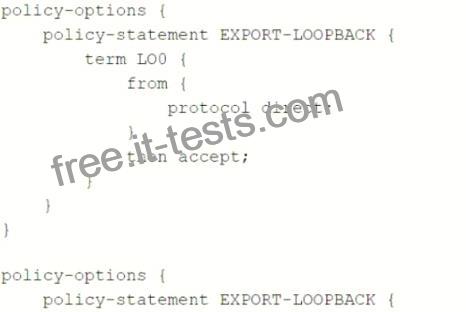

Q88. You are asked to build a single export policy that can be applied to all devices to advertise only loopback IP addresses in the 172.16.0.0/24 subnet into your EBGP IP fabric. In this scenario, which two solutions would accomplish this task? (Choose two.) A)

B)

C)

D)

Option A

Option B

Option C

Option D

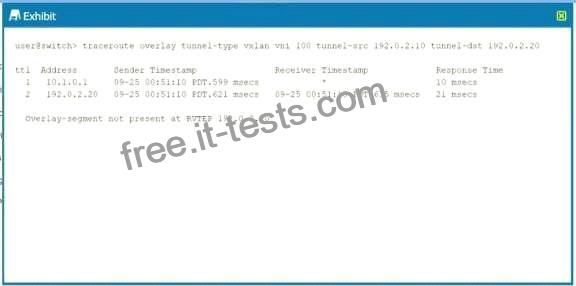

Q89. You are troubleshooting a problem with traffic not reaching a remote VTEP. Referring to the exhibit, what is the reason for the problem?

A conflict exists with the VLAN-to-VNI mapping.

The local VTEP is misconfigured with the wrong VNI.

No VTEP is configured on peer 192.0.2.20.

The remote VTEP does not have the correct VNI configured.

Q90. Referring to the exhibit,

what happens when you initiate ZTP on a QFX5120 switch running Junos
21.3R1.9?

ZTP skips both the Junos installation and the configuration.

ZTP performs the Junos installation but skips the configuration.

ZTP performs both the Junos installation and the configuration.

ZTP skips the Junos installation but applies the configuration.

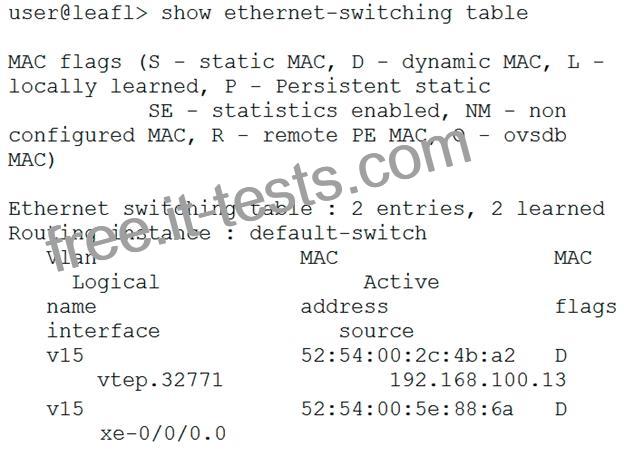

Q91. Referring to the VTEP output shown in the exhibit, which two statements are true? (Choose two.)

The MAC address 52:54:00:2c:4b:a2 belongs to a local host.

The MAC address 52:54:00:5e:88:6a belongs to a remote host.

The MAC address 52:54:00:2c:4b:a2 belongs to a remote host.

The MAC address.52:54:00:5e:88:6a belongs to a local host.

Explanation
logical interface is vtep = MAC learned from remote vtep logical interface is local (i.e. xe-0/0/*) = MAC
learned locally via normal bridging

Q92. You are asked to scale the available bandwidth within your Clos data center network to support more east-west traffic. In this scenario, what are two ways to accomplish this task? (Choose two.)

Add leaf devices to increase available paths and bandwidth

Use aggregated interfaces in the fabric.

Add spines to increase available paths and bandwidth.

Interconnect all spines to increase available paths and bandwidth.

Q93. Which two statements are correct about VXLANs? (Choose two.)

VXLANs have smaller broadcast domains than VLANs.

VXLANs have a smaller logical network identifier than VLANs.

VXLANs can have a theoretical maximum of 16 million unique networks.

VXLANs are an overlay technology.

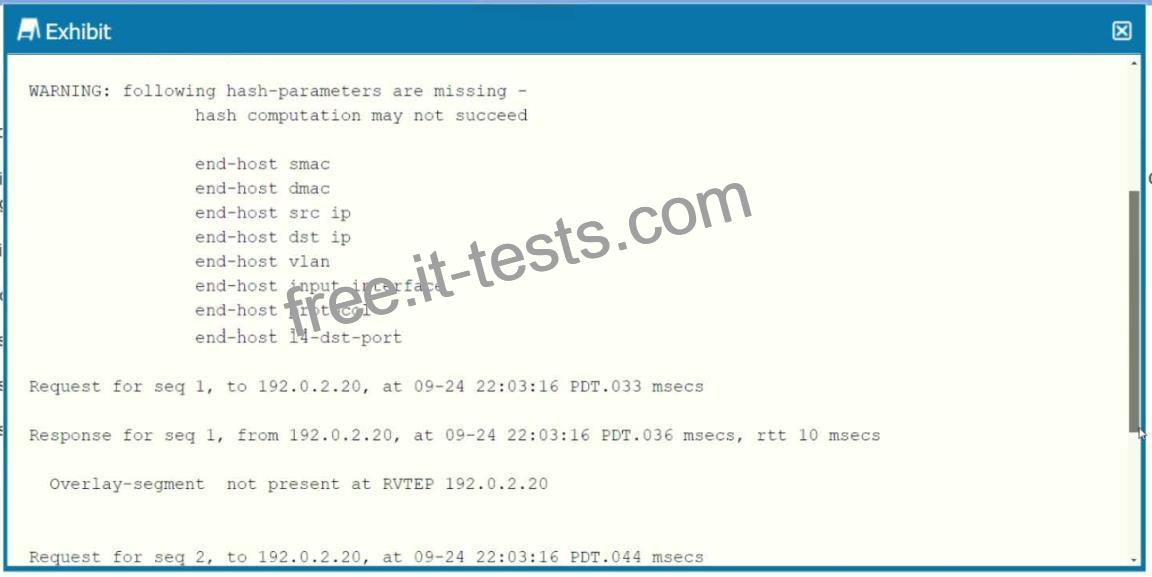

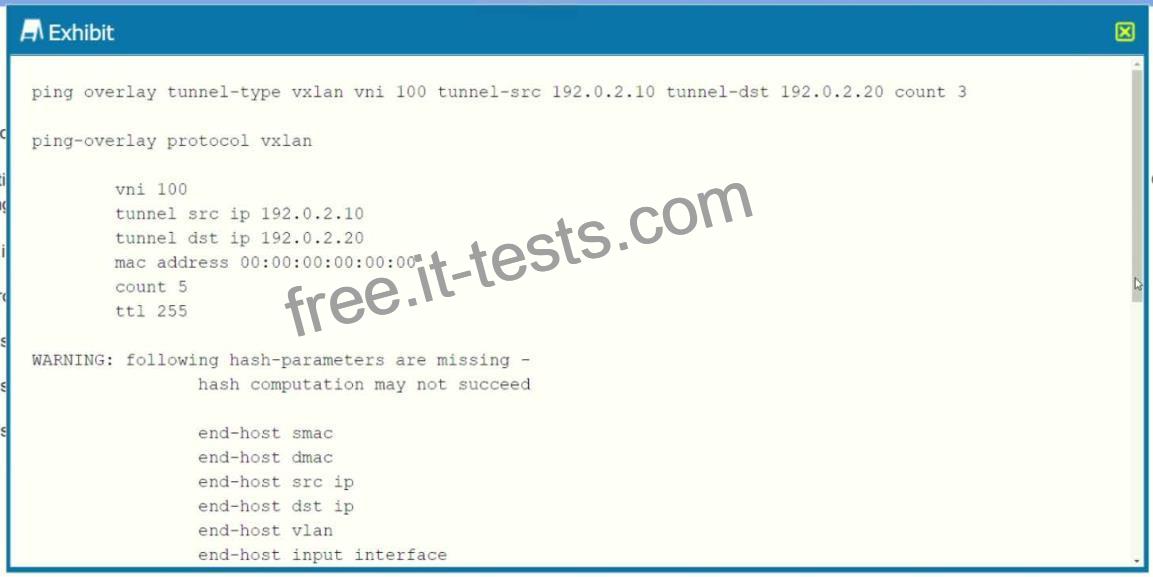

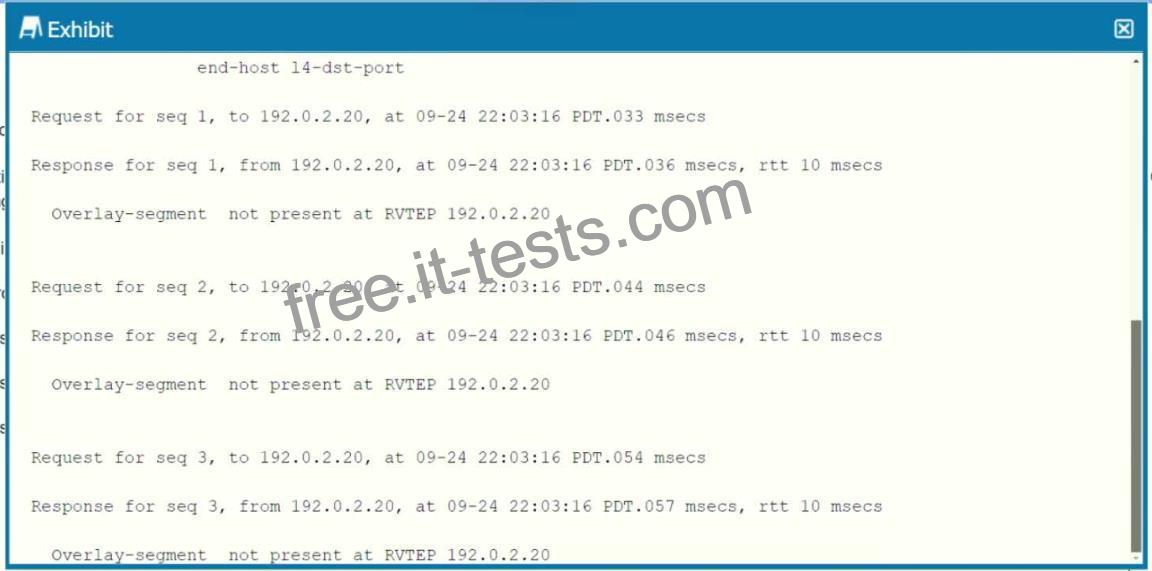

Q94. Exhibit.

You are troubleshooting a connectivity issue across a VXLAN overlay network. In the exhibit, you are using the ping overlay command from a local VTEP residing on a OFX 5120 to a remote VTEP residing on a separate QFX5120.
What is the problem in this situation?

The VXLAN controller is down.

VXLAN VN1100 is not configured on the local VTEP

VXLAN VN1100 is not configured on the remote VTEP.

VXLAN VN1100 is not configured on both end points.

Loading …

Juniper JN0-682 Exam Certification Details:

Exam Price	$400 USD
Passing Score	Variable (60-70% Approx.)
Exam Name	Data Center Professional
Sample Questions	Juniper JN0-682 Sample Questions
Number of Questions	65
Exam Code	JN0-682 JNCIP-DC
